Specification
| Interface | USB 3.0, USB-C, SATA I/II/III |

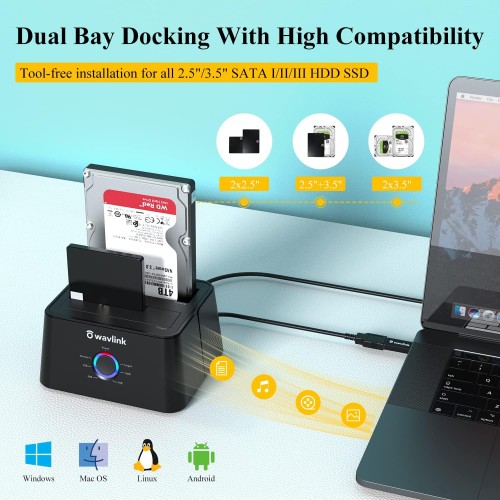

| Supported Drives | 2.5 inch and 3.5 inch SATA HDDs/SSDs |
| Maximum Capacity | Up to 2 x 16TB |

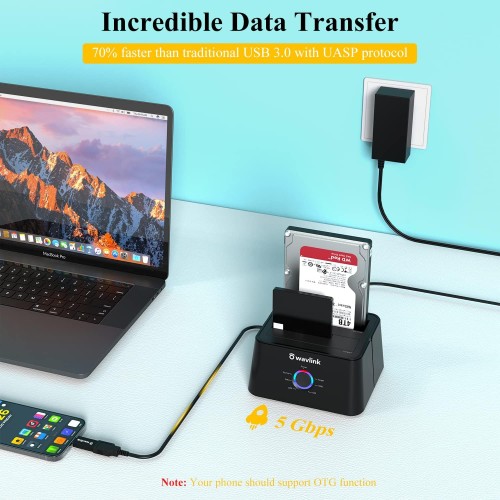

| Transfer Speeds | Up to 6Gbps (UASP), 5Gbps (USB 3.0), 480Mbps (USB 2.0), 12Mbps (USB 1.1) |
| Offline Cloning Speed | Up to 60Mbps |
| Cloning Method | Offline Clone (source disk to target disk) |
| Power Supply | 12V, 3A DC adapter |
| Power Control | Built-in power control switch |
| Energy Saving Feature | Automatic sleep mode after 30 minutes of inactivity |
| Compatibility | Windows 10 through XP, Mac OS X (not compatible with M1/M2), Linux/Unix |
| Installation | Tool-free installation |
| Hot-Swapping Support | Yes |
| Driver Requirement | No drivers needed (uses standard USB Mass Storage class) |
| Clone Button | Yes, for easy offline cloning |
| Safety Features | Overheating protection, backup recommendation for target drive |

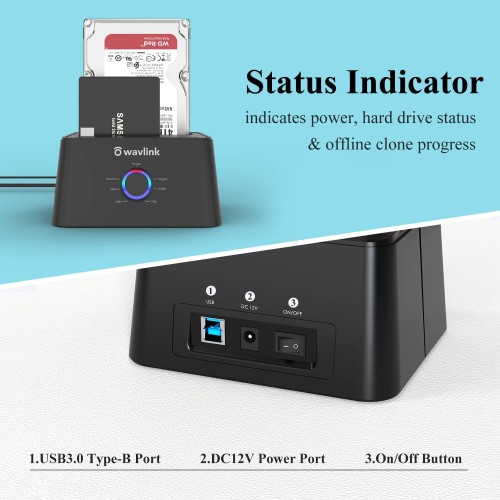

| LED Indicators | Blue LED for cloning progress |

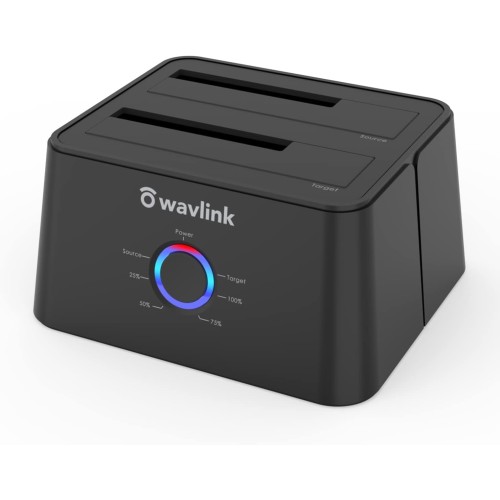

USB A/C to SATA Dual Bay Docking Station
Wavlink Dual Bay HDD/SSD Storage Docking Station ST334UA, allows you to install and access SATA drives quickly, it is a perfect solution for data recovery, drive imaging, and testing centers, or any environment requiring fast access to uninstalled/archived drives.

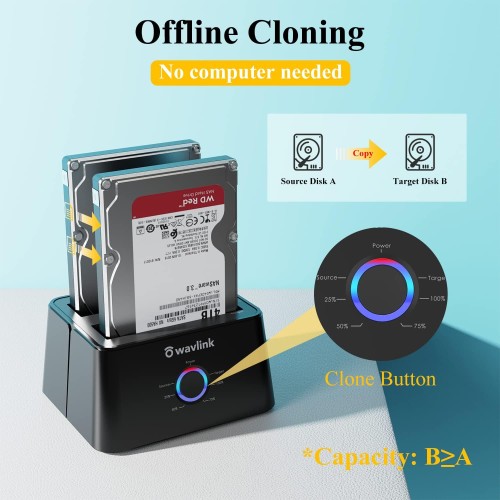

Hard Drive Offline Clone Function
- Make sure that the USB cable is disconnected from your computer.
- Hold down the clone button for 3-5 second, when the lights are blinking, the clone progress start.
- A Blue LED will flash on 25% indicating that the cloning process has begun.
- ALL the lights turn solid Blue (25%-100%).
Attention
- Please backup files in the target hard drive before cloning. Any files in target hard drive will be overwritten when offline cloning occurs.
- To avoid data loss, do not remove or insert drives when one drive is working in the docking station. Please power off the docking station before removing.
- Do not try to insert or withdraw HDD or SSD when another hard drive running.
- Overheating and damage to the device please make sure that there are no faulty driver cells.
Features:

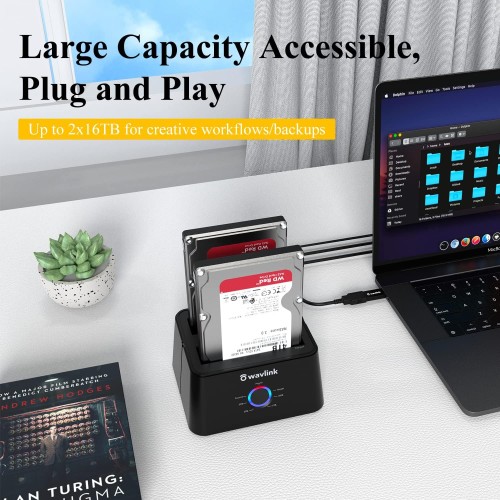

- Support maximun capacity up to 2x16TB.
- Support UASP accelerated transfer protocol.
- Automatic replication of HDD or SSD (clones from Source Disk A to Target Disk B) at a click of the button.
- Use the dedicated DC power adapter certified by PSE.
- Plug and play. No software, drivers or complicated installation required.
Instructions on How to Connect the Dock to the Computer:
- Please unplug the DC power adapter to make sure that the power is off before starting.

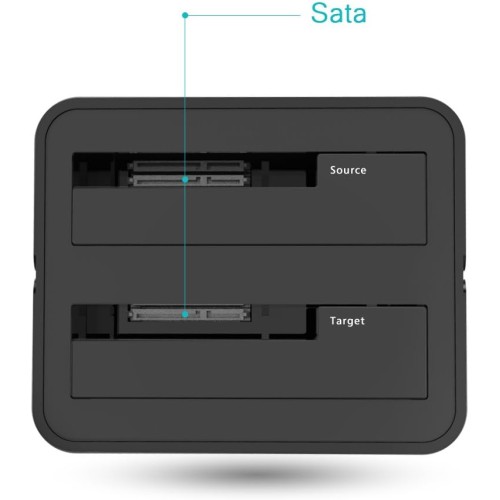

- Insert HDDs/SSDs into the slots vertically and slowly until them stick.(One HDD/SSD is also supported)
- Connect the power adapter and turn the "ON-OFF" switch on.
- Connect the USB cable to the computer then you can use it as your computer's external hard drive.
